Industrial Unit Coolers

Industrial unit coolers for cold storage, process rooms and food plant. Rated for HFC, CO2, ammonia and glycol, from 6 fins per inch for coolers down to 2 for low-temperature rooms that frost.

Best for Cold storage warehouses, freezers, process rooms and food plants on HFC, CO2, ammonia or glycol.

Request a Quote Size it now

Photo slotunit-cooler-industrial-1600.jpg

Industrial Unit Cooler

Single discharge, ceiling mounted, one to four fans. Sized to the room load and the evaporating temperature.

UL approvedEC fans, 60 Hz Aluminum / copper / stainless

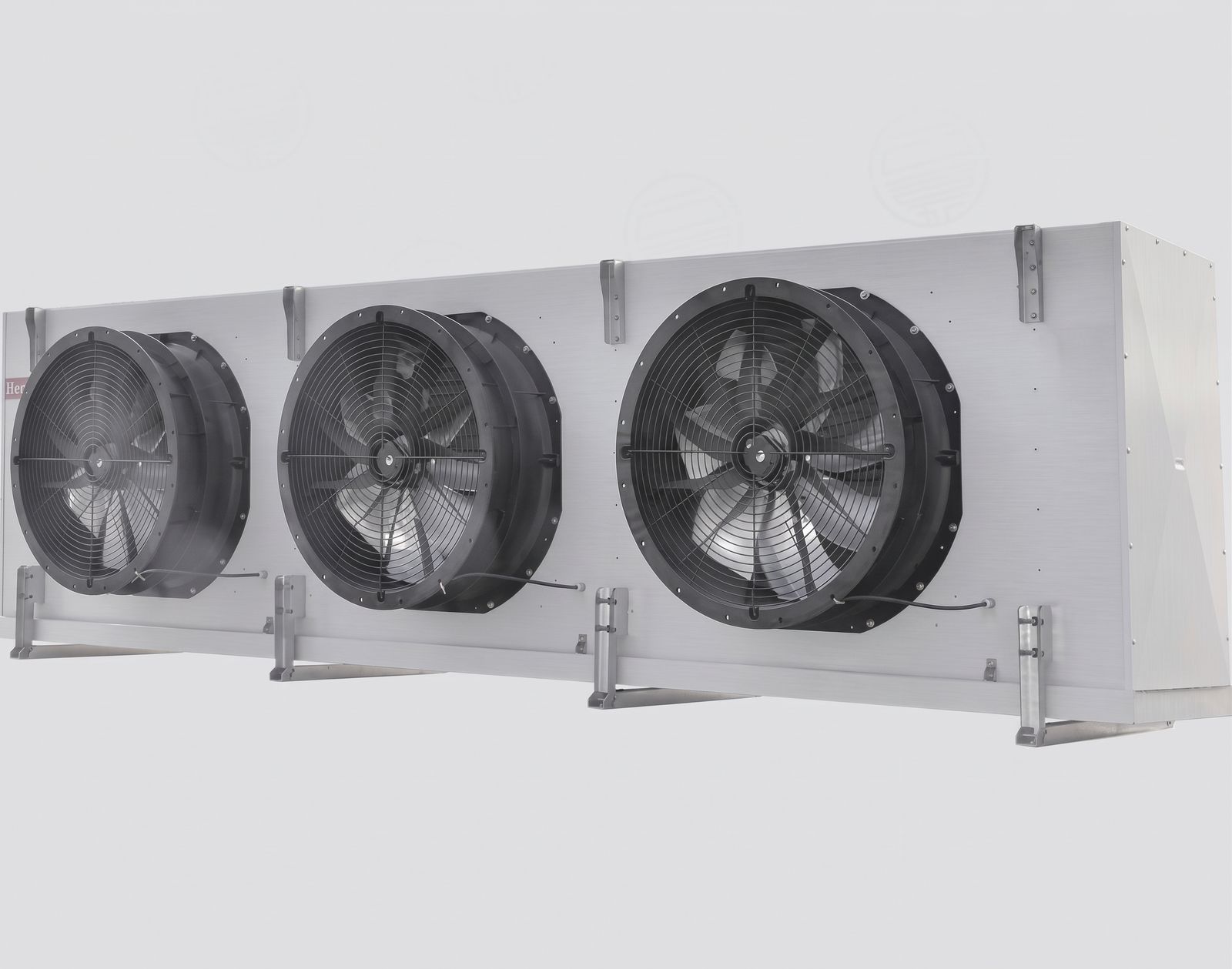

Ceiling mounted unit cooler with three large axial fans and guards on a brushed aluminum casing with stainless hanger brackets.

Photo slotunit-cooler-1600.jpg

Ceiling Mount Unit Cooler

Hangs off the ceiling on stainless brackets and throws air the length of the room.

UL approvedEC fans, 60 Hz Aluminum / copper / stainless

Specifications

US units, 60 Hz power. Every rating states the condition it was taken at.

HFC, 32°F SST: 17 to 426 MBH at 10°F TD
HFC, 18°F SST: 9 to 370 MBH at 10°F TD
HFC, -13°F SST: 7 to 298 MBH at 10°F TD
HFC, -40°F SST: 7 to 237 MBH at 10°F TD
CO2 pumped, -13°F SST: 9 to 315 MBH at 10°F TD
Ammonia pumped, 18°F SST: 13 to 425 MBH at 10°F TD
Ammonia pumped, -13°F SST: 9 to 367 MBH at 10°F TD
Glycol: 25 to 597 MBH with 25% EG, 32°F room
Fans: 16, 18, 20, 25 or 31 in EC, one to four
Airflow: 1,744 to 49,073 CFM
Air throw: 30 to 138 ft
Fin spacing: 6, 4, 3 or 2 fins per inch
Defrost: Electric coil and drain pan heaters, hot gas or water
Size and weight: 56 to 245 in long, 95 to 2,456 lb
Power: 60 Hz. 208-230 V or 460 V. EC fans; 49 in fans and larger on a VFD
Approval: UL approved

ULCERoHS

Models and codes

324 models. Capacity is in MBH at 10°F TD, where TD is entering air minus saturated suction. Pick the table for your refrigerant and fin spacing.

How to read the code

KUC-H017-116-F6R4

KUCIndustrial unit cooler
HMedium. H HFC, C CO2 pumped, A ammonia pumped, G water or glycol
017Nominal capacity, MBH at 10°F TD, first rating point in the table
1Number of fans
16Fan diameter, inches
F6Fins per inch
R4Coil rows

60 Hz. EC fans on 208-230 V/1/60, 208-230 V/3/60 or 460 V/3/60. 49 in fans and larger on a VFD.

Sound pressure dB(A) at 10 ft (3 m), free field.

HFC ratings on R404A/R507A. Lower-GWP blends are selected per project.

HFC, 6 fins per inch40 models

Model	32°F SST, MBH	18°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-H017-116-F6R4	17.3	14.9	1,965	33	52	3.28 + 0.82	56 x 29 x 22	95	5/8 / 7/8
KUC-H021-116-F6R6	21.4	18.5	1,793	30	52	4.10 + 0.82	56 x 29 x 22	128	5/8 / 7/8
KUC-H024-118-F6R4	23.9	20.4	2,756	49	56	3.84 + 0.96	60 x 31 x 26	121	5/8 / 7/8
KUC-H030-118-F6R6	29.8	25.6	2,530	46	56	5.76 + 0.96	60 x 31 x 26	148	5/8 / 1-1/8
KUC-H032-120-F6R4	32.0	27.5	4,521	62	57	4.40 + 1.10	64 x 31 x 26	161	5/8 / 1-1/8
KUC-H035-216-F6R4	34.9	30.1	3,931	36	54	6.72 + 1.68	87 x 29 x 22	168	5/8 / 1-1/8
KUC-H040-120-F6R6	40.4	35.1	4,030	56	56	6.60 + 1.10	64 x 31 x 26	183	5/8 / 1-3/8
KUC-H043-216-F6R6	43.0	37.2	3,586	33	54	8.40 + 1.68	87 x 29 x 22	227	5/8 / 1-3/8
KUC-H048-218-F6R4	48.0	41.0	5,511	56	58	7.28 + 1.82	95 x 31 x 26	214	5/8 / 1-3/8
KUC-H052-316-F6R4	51.9	44.8	5,896	39	55	9.60 + 2.40	119 x 29 x 22	234	5/8 / 1-3/8
KUC-H060-218-F6R6	59.7	51.7	5,060	52	58	10.92 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-H064-316-F6R6	64.5	55.7	5,384	36	55	12.00 + 2.40	119 x 29 x 22	320	7/8 / 1-5/8
KUC-H065-220-F6R4	64.6	55.7	9,041	69	59	8.44 + 2.11	103 x 31 x 26	214	7/8 / 1-5/8
KUC-H066-125-F6R4	66.0	56.6	10,182	105	70	8.75 + 1.25	72 x 37 x 43	390	7/8 / 1-5/8
KUC-H069-416-F6R4	69.2	59.5	7,869	43	56	10.78 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-H072-318-F6R4	72.2	62.1	8,267	59	59	11.12 + 2.78	131 x 31 x 26	300	7/8 / 1-5/8
KUC-H082-220-F6R6	82.1	71.1	8,060	62	58	12.66 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-H085-131-F6R4	85.3	73.2	11,298	112	68	11.12 + 1.39	80 x 41 x 50	560	7/8 / 2-1/8
KUC-H086-416-F6R6	85.9	74.4	7,171	39	56	16.94 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-H088-125-F6R6	88.5	76.1	9,323	98	69	12.50 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-H090-318-F6R6	89.7	77.5	7,590	56	59	15.29 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-H096-418-F6R4	96.1	82.5	11,022	66	60	14.56 + 3.64	166 x 31 x 26	406	7/8 / 1-5/8
KUC-H096-320-F6R4	96.3	83.2	13,553	72	60	12.32 + 3.08	143 x 31 x 26	408	1-1/8 / 2-1/8
KUC-H109-131-F6R6	109.0	94.3	10,355	102	66	16.68 + 1.39	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-H118-418-F6R6	118.1	102.4	10,121	62	60	21.84 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-H123-320-F6R6	122.8	106.6	12,091	66	59	16.94 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-H130-420-F6R4	129.9	111.6	18,082	75	61	15.76 + 3.94	182 x 31 x 26	553	1-1/8 / 2-1/8
KUC-H134-225-F6R4	133.5	114.9	20,365	115	72	16.80 + 2.40	119 x 37 x 43	697	1-1/8 / 2-5/8
KUC-H165-420-F6R6	164.7	142.9	16,120	69	60	23.64 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-H166-225-F6R6	166.1	143.8	18,608	108	71	24.00 + 2.40	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-H172-231-F6R4	171.7	147.6	22,597	121	70	20.85 + 2.78	135 x 41 x 50	935	1-1/8 / 2-5/8
KUC-H206-325-F6R4	205.9	176.1	30,575	125	73	21.84 + 3.64	166 x 37 x 43	961	1-3/8 / 3-1/8
KUC-H219-231-F6R6	219.3	189.3	20,710	112	68	31.97 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-H258-331-F6R4	258.2	221.8	33,896	128	71	31.65 + 4.22	190 x 41 x 50	1,314	1-3/8 / 3-1/8
KUC-H267-325-F6R6	267.3	229.8	27,969	118	72	34.58 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-H269-425-F6R4	268.8	231.5	40,730	128	74	31.20 + 4.80	213 x 37 x 43	1,347	1-3/8 / 3-1/8
KUC-H330-331-F6R6	329.5	284.6	31,065	118	69	46.42 + 4.22	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-H330-431-F6R4	330.2	285.1	45,145	135	73	42.00 + 5.60	245 x 41 x 50	1,748	1-5/8 / 3-1/8
KUC-H352-425-F6R6	351.8	304.5	37,253	121	73	45.60 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-H426-431-F6R6	426.5	370.1	41,371	125	71	61.60 + 5.60	245 x 41 x 50	2,092	1-5/8 / 3-1/2

HFC, 4 fins per inch40 models

Model	18°F SST, MBH	-13°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-H015-116-F4R6	14.9	12.7	1,977	33	54	3.28 + 0.82	56 x 29 x 22	128	5/8 / 7/8
KUC-H015-118-F4R4	15.4	12.7	2,931	49	59	2.88 + 0.96	60 x 31 x 26	121	5/8 / 7/8
KUC-H016-116-F4R4	16.3	11.4	1,798	36	54	2.46 + 0.82	56 x 29 x 22	95	5/8 / 7/8
KUC-H021-118-F4R6	20.6	17.6	2,766	46	59	3.84 + 0.96	60 x 31 x 26	148	5/8 / 1-1/8
KUC-H021-120-F4R4	20.9	18.4	4,898	66	60	3.30 + 1.10	64 x 31 x 26	161	5/8 / 1-1/8
KUC-H022-216-F4R4	22.5	19.5	4,162	39	56	5.04 + 1.68	87 x 29 x 22	168	5/8 / 1-1/8
KUC-H027-120-F4R6	26.8	24.1	4,549	62	60	4.40 + 1.10	64 x 31 x 26	183	5/8 / 1-3/8
KUC-H030-216-F4R6	30.3	25.7	3,950	36	56	6.72 + 1.68	87 x 29 x 22	227	5/8 / 1-3/8
KUC-H031-218-F4R4	31.3	26.0	5,862	56	61	5.46 + 1.82	95 x 31 x 26	214	5/8 / 1-3/8
KUC-H034-316-F4R4	34.1	29.0	6,244	43	57	7.20 + 2.40	119 x 29 x 22	234	5/8 / 1-3/8
KUC-H042-218-F4R6	41.7	34.9	5,531	52	61	9.10 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-H042-220-F4R4	41.9	37.1	9,796	72	62	6.33 + 2.11	103 x 31 x 26	214	7/8 / 1-5/8
KUC-H044-125-F4R4	43.6	36.8	10,791	108	71	6.25 + 1.25	72 x 37 x 43	390	7/8 / 1-5/8
KUC-H045-416-F4R4	45.0	37.9	8,325	46	58	7.70 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-H045-316-F4R6	45.3	38.5	5,925	39	57	9.60 + 2.40	119 x 29 x 22	320	7/8 / 1-5/8
KUC-H047-318-F4R4	46.9	39.3	8,793	59	62	8.34 + 2.78	131 x 31 x 26	300	7/8 / 1-5/8
KUC-H057-220-F4R6	56.6	50.1	9,092	69	62	8.44 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-H060-125-F4R6	59.5	52.5	10,224	105	70	8.75 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-H061-416-F4R6	60.9	51.7	7,900	43	58	12.32 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-H063-318-F4R6	62.8	52.5	8,297	56	62	12.51 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-H063-418-F4R4	62.8	52.5	11,723	66	63	10.92 + 3.64	166 x 31 x 26	406	7/8 / 1-5/8
KUC-H063-320-F4R4	63.3	55.0	14,694	75	63	9.24 + 3.08	143 x 31 x 26	408	1-1/8 / 2-1/8
KUC-H076-131-F4R6	76.3	66.1	11,323	112	69	12.51 + 1.39	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-H084-418-F4R6	83.9	70.1	11,062	62	63	16.38 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-H084-420-F4R4	83.9	74.5	19,591	79	64	11.82 + 3.94	182 x 31 x 26	553	1-1/8 / 2-1/8
KUC-H086-320-F4R6	85.8	74.5	13,637	72	63	12.32 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-H088-225-F4R4	87.7	74.7	21,583	118	73	12.00 + 2.40	119 x 37 x 43	697	1-1/8 / 2-5/8
KUC-H090-131-F4R8	89.6	76.1	10,747	105	67	15.29 + 1.39	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-H114-420-F4R6	113.7	100.5	18,183	75	64	17.73 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-H121-225-F4R6	121.1	103.2	20,441	115	72	16.80 + 2.40	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-H130-325-F4R4	130.1	117.3	32,392	128	74	16.38 + 3.64	166 x 37 x 43	961	1-3/8 / 3-1/8
KUC-H148-231-F4R6	148.3	123.5	22,707	121	71	25.02 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-H176-425-F4R4	176.1	150.8	43,165	131	75	21.60 + 4.80	213 x 37 x 43	1,347	1-3/8 / 3-1/8
KUC-H178-231-F4R8	178.2	148.4	21,482	115	69	29.19 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-H181-325-F4R6	180.8	150.8	30,642	125	73	23.66 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-H220-331-F4R6	219.9	179.0	34,043	128	77	33.76 + 4.22	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-H243-425-F4R6	242.9	207.7	40,881	128	74	31.20 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-H265-331-F4R8	265.2	229.9	32,205	121	72	42.20 + 4.22	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-H291-431-F4R6	290.7	235.3	45,391	135	79	44.80 + 5.60	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-H358-431-F4R8	357.6	298.2	42,964	128	74	58.80 + 5.60	245 x 45 x 50	2,456	1-5/8 / 3-1/2

HFC, 3 fins per inch40 models

Model	18°F SST, MBH	-13°F SST, MBH	-24°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-H009-116-F3R4	9.0	7.9	7.6	2,117	36	55	2.46 + 0.82	56 x 29 x 22	95	5/8 / 7/8
KUC-H012-116-F3R6	12.3	10.6	10.4	2,038	36	54	3.28 + 0.82	56 x 29 x 22	128	5/8 / 7/8
KUC-H018-118-F3R6	17.8	14.9	14.5	2,848	52	60	2.88 + 0.96	60 x 31 x 26	148	5/8 / 1-1/8
KUC-H018-216-F3R4	18.2	15.7	15.5	4,234	39	57	3.36 + 1.68	87 x 29 x 22	168	5/8 / 1-1/8
KUC-H022-118-F3R8	21.6	17.9	17.7	2,718	49	59	3.84 + 0.96	On request	On request	On request
KUC-H024-120-F3R6	24.2	20.9	20.5	4,728	62	61	3.30 + 1.10	64 x 31 x 26	183	5/8 / 1-3/8
KUC-H026-216-F3R6	25.8	21.7	21.2	4,075	39	56	5.04 + 1.68	87 x 29 x 22	227	5/8 / 1-3/8
KUC-H028-316-F3R4	28.2	23.6	22.7	6,346	43	58	4.80 + 2.40	119 x 29 x 22	234	5/8 / 1-3/8
KUC-H029-120-F3R8	29.1	25.5	24.6	4,442	59	61	4.40 + 1.10	On request	On request	On request
KUC-H036-218-F3R6	35.8	30.1	29.4	5,696	59	62	5.46 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-H038-416-F3R4	37.7	30.9	30.0	8,461	46	59	6.16 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-H039-316-F3R6	39.1	32.2	31.6	6,107	43	57	7.20 + 2.40	119 x 29 x 22	320	7/8 / 1-5/8
KUC-H043-218-F3R8	43.4	36.3	35.4	5,436	56	61	7.28 + 1.82	On request	On request	On request
KUC-H049-220-F3R6	48.6	40.3	38.9	9,450	69	63	6.33 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-H050-125-F3R6	49.8	43.6	42.3	10,512	108	70	6.25 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-H052-416-F3R6	51.9	43.9	43.0	8,150	46	58	9.24 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-H054-318-F3R6	53.8	45.2	44.2	8,545	62	63	8.34 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-H059-220-F3R8	58.8	50.9	49.9	8,890	66	63	8.44 + 2.11	On request	On request	On request
KUC-H064-125-F3R8	63.5	54.4	52.8	10,049	105	70	8.75 + 1.25	72 x 41 x 43	518	1-1/8 / 2-1/8
KUC-H064-131-F3R6	63.7	54.7	53.4	11,715	115	70	8.34 + 1.39	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-H065-318-F3R8	65.2	54.4	53.4	8,154	59	62	9.73 + 2.78	On request	On request	On request
KUC-H072-418-F3R6	71.8	60.4	59.1	11,393	69	64	10.92 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-H073-320-F3R6	73.2	63.6	62.2	14,184	72	64	9.24 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-H077-131-F3R8	77.2	66.3	64.8	11,145	112	68	11.12 + 1.39	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-H087-418-F3R8	87.2	72.6	71.4	10,872	66	63	14.56 + 3.64	On request	On request	On request
KUC-H090-320-F3R8	89.8	74.7	72.4	13,327	69	64	12.32 + 3.08	On request	On request	On request
KUC-H096-420-F3R6	96.4	84.2	82.5	18,912	75	65	13.79 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-H102-225-F3R6	102.1	84.2	80.9	21,005	118	72	12.00 + 2.40	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-H120-420-F3R8	119.9	99.7	97.0	17,755	72	65	17.73 + 3.94	On request	On request	On request
KUC-H128-225-F3R8	127.7	130.5	106.8	20,098	115	72	16.80 + 2.40	119 x 41 x 43	853	1-1/8 / 2-5/8
KUC-H129-231-F3R6	129.1	108.3	105.2	23,406	125	72	16.68 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-H155-325-F3R6	154.7	109.7	126.7	31,517	128	73	16.38 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-H158-231-F3R8	158.3	132.7	129.5	22,279	121	70	20.85 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-H192-325-F3R8	191.5	161.1	156.7	30,128	125	73	21.84 + 3.64	166 x 41 x 43	1,279	1-5/8 / 3-1/8
KUC-H192-331-F3R6	191.5	165.2	161.1	35,146	131	77	25.32 + 4.22	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-H207-425-F3R6	206.6	177.9	174.1	42,049	131	74	24.00 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-H237-331-F3R8	236.7	194.7	188.9	33,418	128	73	31.65 + 4.22	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-H256-425-F3R8	256.1	220.2	214.8	40,196	128	74	31.20 + 4.80	213 x 41 x 43	1,660	1-5/8 / 3-1/8
KUC-H259-431-F3R6	258.8	217.5	211.7	46,812	138	79	33.60 + 5.60	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-H317-431-F3R8	317.3	266.5	260.6	44,557	135	75	42.00 + 5.60	245 x 45 x 50	2,456	1-5/8 / 3-1/2

HFC, 2 fins per inch44 models

Model	-13°F SST, MBH	-40°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-H007-116-F2R4	7.0	6.6	2,161	36	55	2.46 + 0.82	56 x 29 x 22	95	5/8 / 7/8
KUC-H010-116-F2R6	9.5	9.5	2,085	36	54	3.28 + 0.82	56 x 29 x 22	128	5/8 / 7/8
KUC-H014-118-F2R6	13.5	12.6	2,938	52	60	3.84 + 0.96	60 x 31 x 26	148	5/8 / 1-1/8
KUC-H014-216-F2R4	13.8	13.6	4,322	39	57	5.04 + 1.68	87 x 29 x 22	168	5/8 / 1-1/8
KUC-H016-118-F2R8	16.0	16.1	2,830	49	59	4.80 + 0.96	On request	On request	On request
KUC-H019-120-F2R6	19.0	17.7	4,909	62	61	4.40 + 1.10	64 x 31 x 26	183	5/8 / 1-3/8
KUC-H019-216-F2R6	19.2	19.0	4,170	39	56	6.72 + 1.68	87 x 29 x 22	227	5/8 / 1-3/8
KUC-H021-316-F2R4	21.4	20.5	6,483	43	58	7.20 + 2.40	119 x 29 x 22	234	5/8 / 1-3/8
KUC-H023-120-F2R8	23.0	22.4	4,684	59	61	5.50 + 1.10	On request	On request	On request
KUC-H026-218-F2R6	25.7	25.3	5,877	59	62	7.28 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-H028-316-F2R6	28.2	28.8	6,255	43	57	9.60 + 2.40	119 x 29 x 22	320	7/8 / 1-5/8
KUC-H028-416-F2R4	28.2	25.3	8,643	46	59	9.24 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-H031-218-F2R8	31.4	31.3	5,662	56	61	9.10 + 1.82	On request	On request	On request
KUC-H038-220-F2R6	37.6	36.6	9,821	69	63	8.44 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-H039-125-F2R6	39.0	38.2	10,807	108	70	6.25 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-H039-416-F2R6	39.3	38.2	8,340	46	58	12.32 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-H040-318-F2R6	39.8	36.0	8,815	62	63	5.56 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-H046-220-F2R8	46.3	45.5	9,368	66	63	10.55 + 2.11	On request	On request	On request
KUC-H047-318-F2R8	47.1	49.9	8,492	59	62	6.95 + 2.78	On request	On request	On request
KUC-H049-131-F2R6	49.3	47.7	12,144	115	70	9.73 + 1.39	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-H050-125-F2R8	49.8	47.1	10,436	105	70	7.50 + 1.25	72 x 41 x 43	518	1-1/8 / 2-1/8
KUC-H054-418-F2R6	53.6	47.1	11,753	69	64	14.56 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-H057-320-F2R6	57.4	54.7	14,732	72	64	6.16 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-H061-131-F2R8	60.7	59.1	11,630	112	68	15.29 + 1.39	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-H062-125-F2R10	62.3	60.0	10,228	102	69	8.75 + 1.25	72 x 45 x 43	578	1-1/8 / 2-5/8
KUC-H063-418-F2R8	62.8	62.9	11,322	66	63	18.20 + 3.64	On request	On request	On request
KUC-H071-320-F2R8	70.7	67.9	14,052	69	64	7.70 + 3.08	On request	On request	On request
KUC-H074-420-F2R6	74.5	73.9	19,630	75	65	15.76 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-H081-225-F2R6	80.7	74.6	21,614	115	72	12.00 + 2.40	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-H093-420-F2R8	92.9	91.6	18,736	72	65	19.70 + 3.94	On request	On request	On request
KUC-H099-231-F2R6	99.4	90.4	24,288	125	72	19.46 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-H100-225-F2R8	100.2	93.8	20,872	112	72	14.40 + 2.40	119 x 41 x 43	853	1-1/8 / 2-5/8
KUC-H119-325-F2R6	119.4	108.1	32,412	118	73	18.20 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-H121-231-F2R8	121.3	122.6	23,259	121	70	27.80 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-H125-225-F2R10	124.6	116.9	20,517	108	71	16.80 + 2.40	119 x 45 x 43	939	1-3/8 / 3-1/8
KUC-H146-325-F2R8	146.0	145.3	31,308	115	73	21.84 + 3.64	166 x 41 x 43	1,279	1-5/8 / 3-1/8
KUC-H146-331-F2R6	146.0	129.2	36,432	131	76	29.54 + 4.22	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-H162-425-F2R6	161.9	150.4	43,228	121	74	24.00 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-H181-325-F2R10	181.4	183.2	30,684	112	72	25.48 + 3.64	166 x 45 x 43	1,426	1-5/8 / 3-1/8
KUC-H182-331-F2R8	182.3	179.5	34,889	128	73	37.98 + 4.22	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-H199-431-F2R6	199.3	182.6	48,577	138	78	39.20 + 5.60	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-H201-425-F2R8	201.2	189.6	41,744	118	74	28.80 + 4.80	213 x 41 x 43	1,660	1-5/8 / 3-1/8
KUC-H246-431-F2R8	246.2	227.8	46,494	135	75	50.40 + 5.60	245 x 45 x 50	2,456	1-5/8 / 3-1/2
KUC-H252-425-F2R10	251.8	237.0	41,033	115	73	33.60 + 4.80	213 x 45 x 43	1,832	1-5/8 / 3-1/8

CO2 pumped, 3 fins per inch40 models

Model	-13°F SST, MBH	-24°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-C009-116-F3R4	8.7	8.2	2,145	36	55	1.92 + 0.96	56 x 29 x 22	95	5/8 / 7/8
KUC-C012-116-F3R6	12.2	11.7	2,070	36	54	1.92 + 0.96	56 x 29 x 22	128	5/8 / 7/8
KUC-C017-118-F3R6	16.8	16.4	2,908	52	60	3.30 + 1.10	60 x 31 x 26	148	5/8 / 1-1/8
KUC-C017-216-F3R4	17.1	16.7	4,291	39	57	2.46 + 0.82	87 x 29 x 22	168	5/8 / 1-1/8
KUC-C020-118-F3R8	20.0	19.6	2,796	49	59	4.40 + 1.10	On request	On request	On request
KUC-C023-120-F3R6	23.0	22.4	4,845	62	61	3.75 + 1.25	64 x 31 x 26	183	5/8 / 1-3/8
KUC-C024-216-F3R6	24.4	23.7	4,139	39	56	4.10 + 0.82	87 x 29 x 22	227	5/8 / 1-3/8
KUC-C027-316-F3R4	26.8	26.2	6,437	43	58	3.75 + 2.50	119 x 29 x 22	234	5/8 / 1-3/8
KUC-C028-120-F3R8	28.4	27.8	4,596	59	61	3.75 + 1.25	On request	On request	On request
KUC-C034-218-F3R6	34.1	33.5	5,817	59	62	5.46 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-C037-416-F3R4	36.6	35.7	8,583	46	59	6.16 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-C037-316-F3R6	37.4	36.6	6,209	43	57	6.25 + 2.50	119 x 29 x 22	320	7/8 / 1-5/8
KUC-C041-218-F3R8	40.9	40.1	5,591	56	61	7.28 + 1.82	On request	On request	On request
KUC-C047-220-F3R6	47.4	46.1	9,689	69	63	6.33 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-C049-125-F3R6	49.0	47.7	10,703	108	70	6.25 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-C050-416-F3R6	50.1	49.0	8,279	46	58	9.24 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-C052-318-F3R6	51.7	50.6	8,725	62	63	8.34 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-C058-220-F3R8	57.7	56.2	9,192	66	63	8.44 + 2.11	On request	On request	On request
KUC-C060-131-F3R6	60.4	58.4	12,258	115	70	9.24 + 1.54	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-C061-125-F3R8	60.7	59.1	10,303	105	70	8.75 + 1.25	72 x 41 x 43	518	1-1/8 / 2-1/8
KUC-C062-318-F3R8	62.3	60.7	8,387	59	62	11.12 + 2.78	On request	On request	On request
KUC-C070-418-F3R6	69.6	67.9	11,643	69	64	10.92 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-C073-320-F3R6	72.6	71.1	14,543	72	64	9.24 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-C081-131-F3R8	81.2	79.0	11,885	112	68	12.32 + 1.54	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-C084-418-F3R8	83.7	81.8	11,182	66	63	14.56 + 3.64	On request	On request	On request
KUC-C088-320-F3R8	88.3	86.6	13,788	69	64	12.32 + 3.08	On request	On request	On request
KUC-C097-420-F3R6	96.9	94.8	19,391	75	65	13.79 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-C100-225-F3R6	99.7	97.0	21,411	118	72	12.50 + 2.50	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-C118-420-F3R8	118.1	115.6	18,397	72	65	17.73 + 3.94	On request	On request	On request
KUC-C123-225-F3R8	122.9	119.7	20,606	115	72	17.50 + 2.50	119 x 41 x 43	853	1-1/8 / 2-5/8
KUC-C126-231-F3R6	126.2	123.2	24,526	125	72	18.07 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-C152-325-F3R6	152.2	148.8	32,126	128	73	20.02 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-C155-231-F3R8	155.2	151.3	23,776	121	70	23.63 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-C188-325-F3R8	187.9	183.6	30,918	125	73	25.48 + 3.64	166 x 41 x 43	1,279	1-5/8 / 3-1/8
KUC-C189-331-F3R6	189.3	184.5	36,790	131	77	27.58 + 3.94	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-C202-425-F3R6	202.0	197.8	42,835	131	74	26.40 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-C232-331-F3R8	232.1	226.2	35,649	128	73	35.46 + 3.94	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-C250-425-F3R8	250.0	244.5	41,224	128	74	33.60 + 4.80	213 x 41 x 43	1,660	1-5/8 / 3-1/8
KUC-C257-431-F3R6	256.7	250.9	49,053	138	79	34.84 + 5.36	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-C315-431-F3R8	314.9	307.7	47,552	135	81	48.24 + 5.36	245 x 45 x 50	2,456	1-5/8 / 3-1/2

Ammonia pumped, 4 fins per inch40 models

Model	18°F SST, MBH	-13°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-A013-116-F4R4	12.6	10.8	2,083	36	54	1.92 + 1.92	56 x 29 x 22	95	5/8 / 7/8
KUC-A016-116-F4R6	16.3	14.1	1,979	33	54	1.92 + 1.92	56 x 29 x 22	128	5/8 / 7/8
KUC-A017-118-F4R4	16.8	14.6	2,936	49	59	2.20 + 2.20	60 x 31 x 26	121	5/8 / 7/8
KUC-A022-118-F4R6	22.0	19.2	2,770	46	59	2.20 + 2.20	60 x 31 x 26	148	5/8 / 1-1/8
KUC-A024-120-F4R4	23.5	20.6	4,901	66	60	2.50 + 2.50	64 x 31 x 26	161	5/8 / 1-1/8
KUC-A026-216-F4R4	25.6	22.2	4,166	39	56	2.46 + 1.64	87 x 29 x 22	168	5/8 / 1-1/8
KUC-A032-120-F4R6	31.5	27.6	4,552	62	60	2.50 + 2.50	64 x 31 x 26	183	5/8 / 1-3/8
KUC-A034-216-F4R6	33.6	29.2	3,958	36	56	4.10 + 1.64	87 x 29 x 22	227	5/8 / 1-3/8
KUC-A035-218-F4R4	35.1	30.6	5,872	56	61	3.64 + 3.64	95 x 31 x 26	214	5/8 / 1-3/8
KUC-A035-218-F4R6	35.3	54.2	5,682	52	61	5.46 + 3.64	95 x 31 x 26	269	7/8 / 1-5/8
KUC-A037-316-F4R4	37.2	32.5	6,250	43	57	3.75 + 2.50	119 x 29 x 22	234	5/8 / 1-3/8
KUC-A047-220-F4R4	47.4	42.0	9,802	72	62	4.22 + 4.22	103 x 31 x 26	214	7/8 / 1-5/8
KUC-A049-316-F4R6	49.0	43.1	5,936	39	57	5.00 + 2.50	119 x 29 x 22	320	7/8 / 1-5/8
KUC-A049-125-F4R4	49.0	43.1	10,801	108	71	3.75 + 2.50	72 x 37 x 43	390	7/8 / 1-5/8
KUC-A052-416-F4R4	51.7	44.7	8,332	46	58	4.62 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-A054-318-F4R4	53.6	46.6	8,807	59	62	5.56 + 2.78	131 x 31 x 26	300	7/8 / 1-5/8
KUC-A066-220-F4R6	65.9	57.1	9,098	69	62	6.33 + 4.22	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-A067-125-F4R6	66.8	58.8	10,233	105	70	6.25 + 2.50	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-A068-416-F4R6	68.0	59.0	7,915	43	58	7.70 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-A070-318-F4R6	70.4	61.2	8,312	56	62	6.95 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-A072-418-F4R4	72.5	62.6	11,743	66	63	7.28 + 3.64	166 x 31 x 26	406	7/8 / 1-5/8
KUC-A074-320-F4R4	73.9	64.7	14,703	75	63	6.16 + 3.08	143 x 31 x 26	408	1-1/8 / 2-1/8
KUC-A086-131-F4R6	86.0	73.9	11,798	112	69	7.70 + 3.08	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-A096-418-F4R6	96.0	82.6	11,082	62	63	10.92 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-A099-420-F4R4	98.8	86.1	19,604	79	64	7.88 + 3.94	182 x 31 x 26	553	1-1/8 / 2-1/8
KUC-A099-225-F4R4	99.3	84.2	21,772	118	73	7.50 + 2.50	119 x 37 x 43	697	1-1/8 / 2-5/8
KUC-A100-320-F4R6	99.5	86.9	13,647	72	63	7.70 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-A102-131-F4R8	102.4	88.0	11,218	105	67	10.78 + 3.08	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-A133-420-F4R6	133.2	116.2	18,196	75	64	11.82 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-A137-225-F4R6	136.7	116.2	20,466	115	72	11.25 + 2.50	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-A154-325-F4R4	154.0	134.9	32,392	128	74	10.92 + 3.64	166 x 37 x 43	961	1-3/8 / 3-1/8
KUC-A176-231-F4R6	175.6	152.2	23,596	121	71	15.29 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-A205-425-F4R4	205.4	177.9	43,190	131	75	14.40 + 4.80	213 x 37 x 43	1,347	1-3/8 / 3-1/8
KUC-A208-231-F4R8	208.3	180.6	22,446	115	69	20.85 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-A211-325-F4R6	211.1	183.9	30,699	125	73	16.38 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-A264-331-F4R6	264.2	225.9	35,394	128	77	23.64 + 3.94	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-A282-425-F4R6	281.7	244.0	40,932	128	74	21.60 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-A316-331-F4R8	315.6	270.0	33,669	121	72	31.52 + 3.94	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-A357-431-F4R6	356.9	308.7	47,192	135	78	32.16 + 5.36	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-A425-431-F4R8	425.3	367.2	44,892	128	73	42.88 + 5.36	245 x 45 x 50	2,456	1-5/8 / 3-1/2

Ammonia pumped, 3 fins per inch40 models

Model	-13°F SST, MBH	-24°F SST, MBH	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-A009-116-F3R4	8.9	8.5	2,146	36	54	1.92 + 0.96	56 x 29 x 22	95	5/8 / 7/8
KUC-A012-116-F3R6	11.9	11.7	2,070	33	54	1.92 + 0.96	56 x 29 x 22	128	5/8 / 7/8
KUC-A016-118-F3R6	16.2	15.8	2,908	49	59	2.20 + 1.10	60 x 31 x 26	148	5/8 / 1-1/8
KUC-A018-216-F3R4	18.1	17.7	4,291	39	56	2.46 + 0.82	87 x 29 x 22	168	5/8 / 1-1/8
KUC-A020-118-F3R8	19.5	19.0	2,793	46	59	3.30 + 1.10	On request	On request	On request
KUC-A024-120-F3R6	23.6	22.7	4,845	66	60	2.50 + 1.25	64 x 31 x 26	183	5/8 / 1-3/8
KUC-A025-216-F3R6	24.9	24.0	4,139	36	56	3.28 + 0.82	87 x 29 x 22	227	5/8 / 1-3/8
KUC-A028-316-F3R4	27.9	26.9	6,437	43	57	3.75 + 2.50	119 x 29 x 22	234	5/8 / 1-3/8
KUC-A028-120-F3R8	28.4	27.5	4,596	62	60	3.75 + 1.25	On request	On request	On request
KUC-A035-218-F3R6	34.7	33.5	5,822	56	61	5.46 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-A037-416-F3R4	36.8	35.7	8,583	46	58	4.62 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-A038-316-F3R6	38.2	37.0	6,209	39	57	5.00 + 2.50	119 x 29 x 22	320	7/8 / 1-5/8
KUC-A042-218-F3R8	41.7	40.4	5,591	52	61	5.46 + 1.82	On request	On request	On request
KUC-A048-220-F3R6	48.2	46.8	9,695	72	62	4.22 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-A049-125-F3R6	49.3	47.7	10,703	108	71	5.00 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-A051-416-F3R6	50.6	49.3	8,279	43	58	6.16 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-A052-318-F3R6	51.7	50.2	8,725	59	62	6.95 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-A059-220-F3R8	58.8	56.9	9,198	69	62	6.33 + 2.11	On request	On request	On request
KUC-A061-125-F3R8	60.7	58.4	10,303	105	70	6.25 + 1.25	72 x 41 x 43	518	1-1/8 / 2-1/8
KUC-A062-318-F3R8	62.0	60.3	8,387	56	62	9.73 + 2.78	On request	On request	On request
KUC-A063-131-F3R6	62.8	60.3	12,263	112	69	7.70 + 1.54	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-A071-418-F3R6	70.7	68.6	11,643	66	63	9.10 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-A074-320-F3R6	73.9	71.7	14,543	75	63	7.70 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-A077-131-F3R8	76.9	73.9	11,888	105	67	9.24 + 1.54	80 x 45 x 50	692	1-1/8 / 2-1/8
KUC-A084-418-F3R8	84.5	82.1	11,182	62	63	12.74 + 3.64	On request	On request	On request
KUC-A090-320-F3R8	89.6	87.2	13,797	72	63	10.78 + 3.08	On request	On request	On request
KUC-A099-420-F3R6	99.4	96.7	19,391	79	64	9.85 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-A100-225-F3R6	100.2	97.0	21,418	118	73	10.00 + 2.50	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-A121-420-F3R8	120.8	117.5	18,397	75	64	13.79 + 3.94	On request	On request	On request
KUC-A124-225-F3R8	124.0	120.1	20,618	115	72	13.75 + 2.50	119 x 41 x 43	853	1-1/8 / 2-5/8
KUC-A128-231-F3R6	128.4	124.2	24,526	121	71	13.90 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-A156-325-F3R6	156.0	151.0	32,126	128	74	14.56 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-A157-231-F3R8	157.1	152.0	23,776	115	69	19.46 + 2.78	135 x 45 x 50	1,404	1-3/8 / 3-1/8
KUC-A182-425-F3R6	182.5	177.2	33,687	131	75	21.60 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-A192-325-F3R8	191.7	185.5	30,918	125	73	20.02 + 3.64	166 x 41 x 43	1,279	1-5/8 / 3-1/8
KUC-A193-331-F3R6	193.4	187.4	36,804	128	77	21.67 + 3.94	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-A224-425-F3R8	224.5	218.0	32,926	128	74	26.40 + 4.80	213 x 41 x 43	1,660	1-5/8 / 3-1/8
KUC-A237-331-F3R8	237.2	230.3	35,679	121	72	29.55 + 3.94	190 x 45 x 50	1,843	1-5/8 / 3-1/8
KUC-A262-431-F3R6	261.9	254.3	49,073	135	78	29.48 + 5.36	245 x 41 x 50	2,092	1-5/8 / 3-1/2
KUC-A321-431-F3R8	320.6	311.5	47,572	131	73	37.52 + 5.36	245 x 45 x 50	2,456	1-5/8 / 3-1/2

Water and glycol, 6 fins per inch40 models

Model	Water 39 to 46°F, 61°F room, MBH	25% ethylene glycol 14 to 19°F, 32°F room, MBH	Flow, GPM	CFM	Throw, ft	dB(A)	Heaters, kW coil + pan	L x W x H, in	Weight, lb	Liquid / suction, in
KUC-G035-116-F6R4	35.1	24.6	9.7	1,918	33	52	1.92 + 0.96	56 x 29 x 22	95	5/8 / 7/8
KUC-G050-116-F6R6	49.8	30.0	13.6	1,744	30	52	2.88 + 0.96	56 x 29 x 22	128	5/8 / 7/8
KUC-G052-118-F6R4	52.2	25.6	14.5	2,700	49	56	3.30 + 1.10	60 x 31 x 26	121	5/8 / 7/8
KUC-G069-118-F6R6	69.3	41.6	18.9	2,465	46	56	4.40 + 1.10	60 x 31 x 26	148	5/8 / 1-1/8
KUC-G072-120-F6R4	72.3	41.3	19.8	4,392	62	57	3.75 + 1.25	64 x 31 x 26	161	5/8 / 1-1/8
KUC-G078-216-F6R4	77.5	48.5	21.6	3,836	36	54	4.10 + 0.82	87 x 29 x 22	168	5/8 / 1-1/8
KUC-G092-120-F6R6	91.8	51.5	25.1	3,885	56	56	5.00 + 1.25	64 x 31 x 26	183	5/8 / 1-3/8
KUC-G099-216-F6R6	99.3	59.4	27.3	3,487	33	54	6.56 + 0.82	87 x 29 x 22	227	5/8 / 1-3/8
KUC-G104-316-F6R4	104.4	67.6	29.1	5,754	39	55	6.25 + 2.50	119 x 29 x 22	234	5/8 / 1-3/8
KUC-G109-218-F6R4	109.2	63.8	30.4	5,401	56	58	5.46 + 1.82	95 x 31 x 26	214	5/8 / 1-3/8
KUC-G136-218-F6R6	136.1	78.5	37.4	4,930	52	58	9.10 + 1.82	95 x 31 x 26	269	7/8 / 1-5/8
KUC-G144-220-F6R4	144.0	81.6	39.6	8,783	69	59	6.33 + 2.11	103 x 31 x 26	214	7/8 / 1-5/8
KUC-G147-316-F6R6	146.7	83.9	40.5	5,231	36	55	10.00 + 2.50	119 x 29 x 22	320	7/8 / 1-5/8
KUC-G147-125-F6R4	146.7	69.9	40.5	9,961	105	70	6.25 + 1.25	72 x 37 x 43	390	7/8 / 1-5/8
KUC-G148-416-F6R4	147.7	79.8	40.9	7,672	43	56	9.24 + 3.08	150 x 29 x 22	326	7/8 / 1-5/8
KUC-G148-318-F6R4	148.1	100.3	40.9	8,094	59	59	8.34 + 2.78	131 x 31 x 26	300	7/8 / 1-5/8
KUC-G182-220-F6R6	182.5	101.3	50.2	7,771	62	58	10.55 + 2.11	103 x 31 x 26	269	1-1/8 / 2-1/8
KUC-G189-131-F6R4	189.0	101.0	52.4	11,059	112	68	9.24 + 1.54	80 x 41 x 50	560	7/8 / 2-1/8
KUC-G198-416-F6R6	197.9	117.7	54.6	6,974	39	56	12.32 + 3.08	150 x 29 x 22	395	7/8 / 1-5/8
KUC-G200-125-F6R6	200.0	112.3	55.5	9,054	98	69	10.00 + 1.25	72 x 37 x 43	485	1-1/8 / 2-1/8
KUC-G205-320-F6R4	205.1	112.6	56.8	13,175	72	60	9.24 + 3.08	143 x 31 x 26	408	1-1/8 / 2-1/8
KUC-G207-318-F6R6	207.1	123.9	57.2	7,395	56	59	12.51 + 2.78	131 x 31 x 26	379	7/8 / 1-5/8
KUC-G208-418-F6R4	208.1	119.4	57.7	10,802	66	60	10.92 + 3.64	166 x 31 x 26	406	7/8 / 1-5/8
KUC-G241-131-F6R6	241.2	124.2	66.5	10,042	102	66	13.86 + 1.54	80 x 41 x 50	613	1-1/8 / 2-1/8
KUC-G262-418-F6R6	261.7	147.4	72.2	9,850	62	60	16.38 + 3.64	166 x 31 x 26	511	7/8 / 2-1/8
KUC-G262-320-F6R6	262.1	139.9	72.6	11,656	66	59	13.86 + 3.08	143 x 31 x 26	483	1-1/8 / 2-1/8
KUC-G277-225-F6R4	276.7	192.8	76.6	19,920	115	72	12.50 + 2.50	119 x 37 x 43	697	1-1/8 / 2-5/8
KUC-G287-420-F6R4	287.0	175.7	79.3	17,567	75	61	11.82 + 3.94	182 x 31 x 26	553	1-1/8 / 2-1/8
KUC-G358-231-F6R4	357.9	182.2	99.1	22,107	121	70	18.07 + 2.78	135 x 41 x 50	935	1-1/8 / 2-5/8
KUC-G365-420-F6R6	365.4	222.8	100.8	15,542	69	60	19.70 + 3.94	182 x 31 x 26	675	1-1/8 / 2-5/8
KUC-G410-225-F6R6	410.5	290.7	113.6	18,107	108	71	18.75 + 2.50	119 x 37 x 43	763	1-1/8 / 2-5/8
KUC-G450-325-F6R4	450.4	268.2	124.6	29,881	125	73	20.02 + 3.64	166 x 37 x 43	961	1-3/8 / 3-1/8
KUC-G512-231-F6R6	511.5	314.6	141.3	20,098	112	68	26.41 + 2.78	135 x 41 x 50	1,283	1-1/8 / 3-1/8
KUC-G551-425-F6R4	551.1	396.8	152.3	39,841	128	74	26.40 + 4.80	213 x 37 x 43	1,347	1-3/8 / 3-1/8
KUC-G575-331-F6R4	574.9	352.1	158.9	33,179	128	71	27.58 + 3.94	190 x 41 x 50	1,314	1-3/8 / 3-1/8
KUC-G589-325-F6R6	589.3	347.7	162.9	27,151	118	72	29.12 + 3.64	166 x 37 x 43	1,142	1-5/8 / 3-1/8
KUC-G714-431-F6R4	714.2	360.0	197.2	44,214	135	73	34.84 + 5.36	245 x 41 x 50	1,748	1-5/8 / 3-1/8
KUC-G737-331-F6R6	737.0	448.7	203.4	30,128	118	69	39.40 + 3.94	190 x 41 x 50	1,570	1-5/8 / 3-1/8
KUC-G785-425-F6R6	784.8	462.3	217.1	36,201	121	73	38.40 + 4.80	213 x 37 x 43	1,479	1-5/8 / 3-1/8
KUC-G982-431-F6R6	982.0	597.1	271.2	40,170	125	62	53.60 + 5.36	245 x 41 x 50	2,092	1-5/8 / 3-1/2

Download all 324 models, CSV

Questions buyers ask

Guide: How unit cooler capacity is rated

What is a unit cooler?

A unit cooler is the evaporator that cools a refrigerated room. Fans draw room air through a finned coil where refrigerant or glycol absorbs the heat, then throw the cooled air across the space.

How are KUHLWERX unit coolers rated?

In MBH at 10°F TD, where TD is entering air minus saturated suction temperature, at the suction temperature shown in each table. 324 models cover HFC, CO2, ammonia and glycol.

Which fin spacing do I need?

Rooms above freezing run tighter fins, 4 to 6 fins per inch. Freezers frost the coil, so they use wider spacing, 2 to 3 fins per inch, to run longer between defrosts.

Which defrost options are available?

Electric coil and drain pan heaters, hot gas, or water defrost.

Request a quote

Send us the heat load.

Fluid, flow, ambient and the space you have. A sized selection comes back with the approval marks confirmed.

Request a Quote

A person reads it. Send the heat load and a selection comes back.
