Customized Heat Exchangers
Coils and heat exchanger blocks built to your drawing. Copper, stainless, cupronickel or titanium tube, with fin and coating chosen for the air they sit in.
Best for OEMs and plants that need a coil built to a drawing, in materials or sizes a catalog unit does not cover.
Custom Evaporator Block
Stainless block with fan collars on hinged frames, built to your fan arrangement and your footprint.
Process Coil

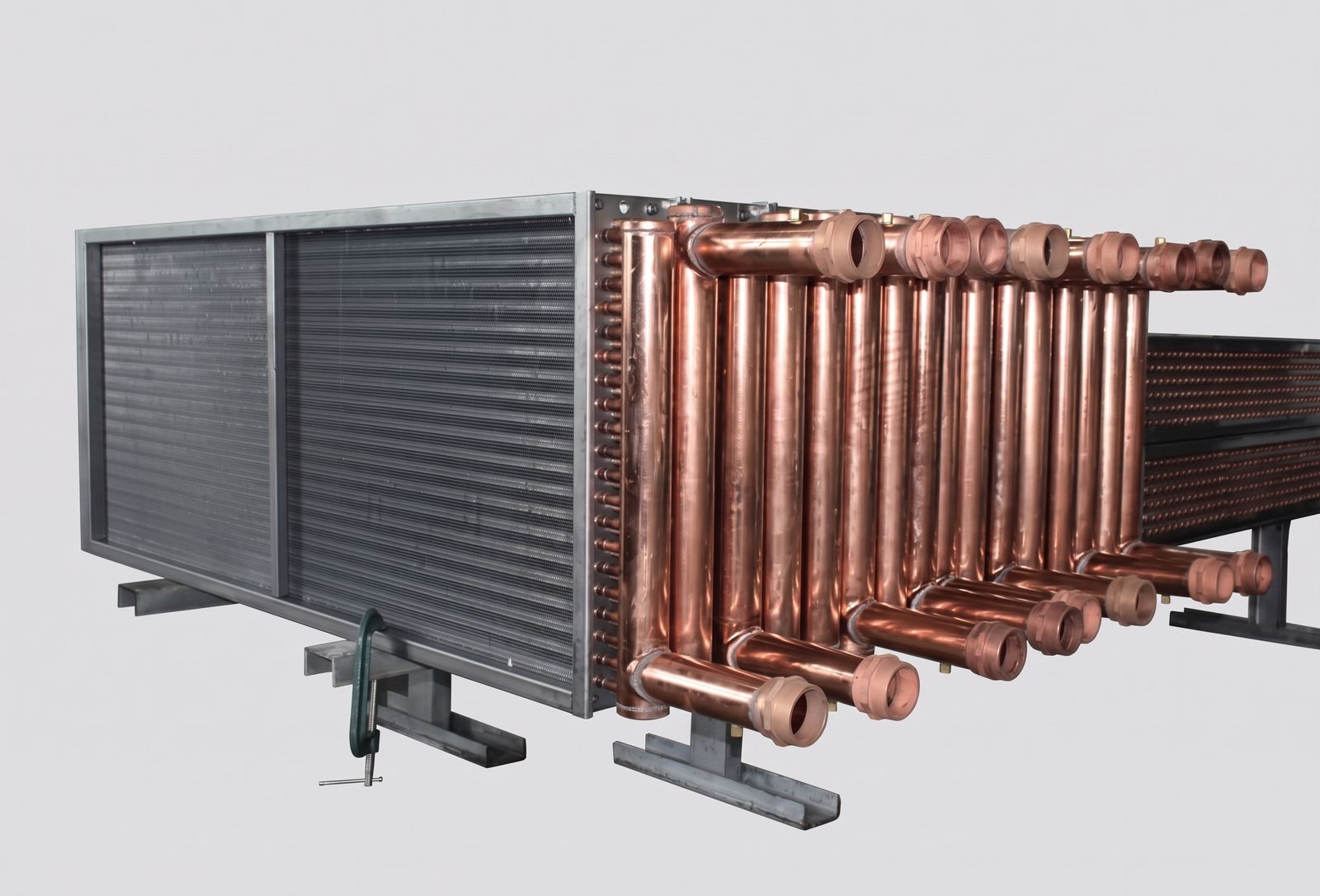

Heavy copper headers and large diameter manifolds with grooved connection stubs, for tight temperature control on a process line.
Configurations
Stainless Mill Duty

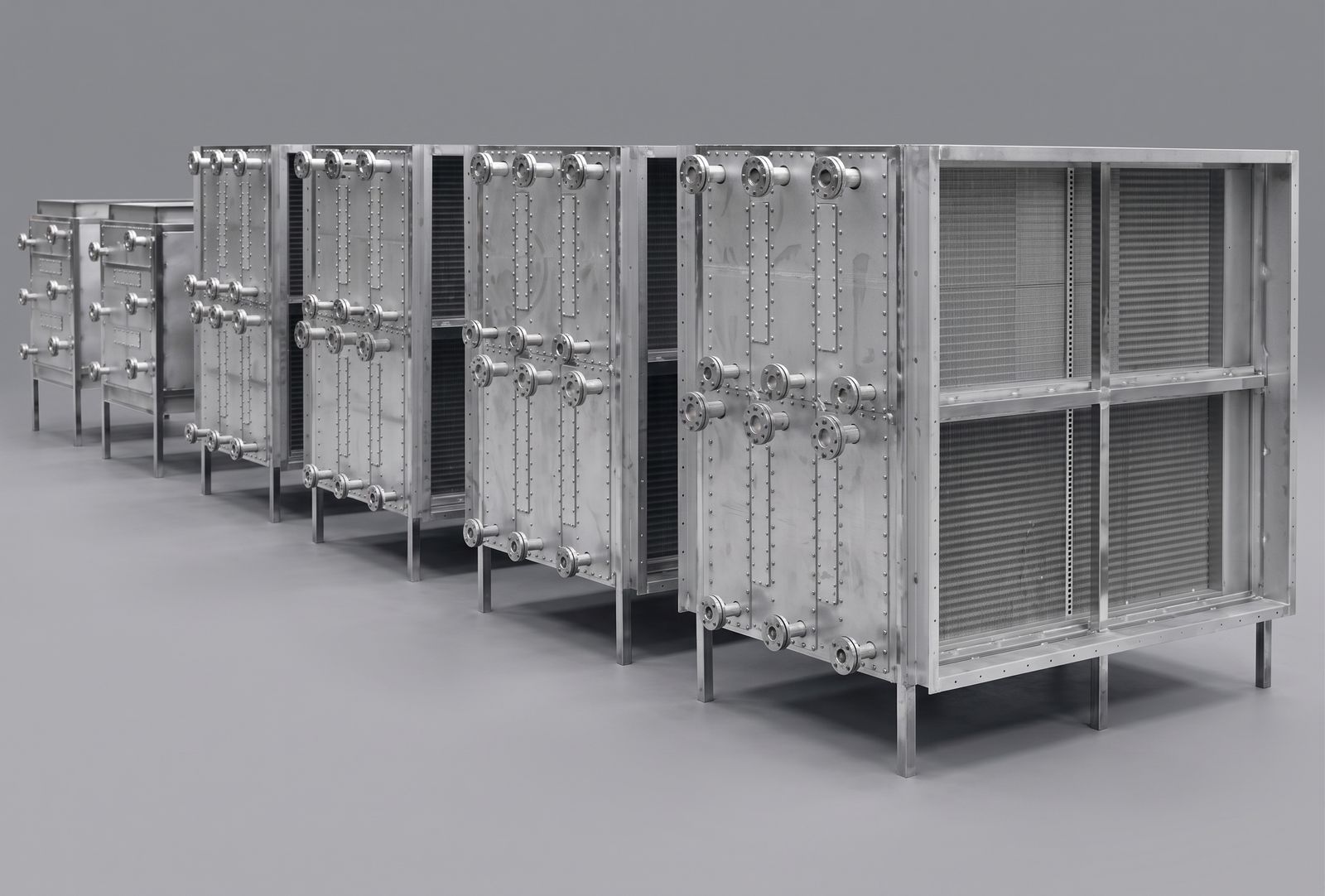

All stainless with riveted header covers and flanged connections, for wet, warm and corrosive air.
Coated Corrosion Duty

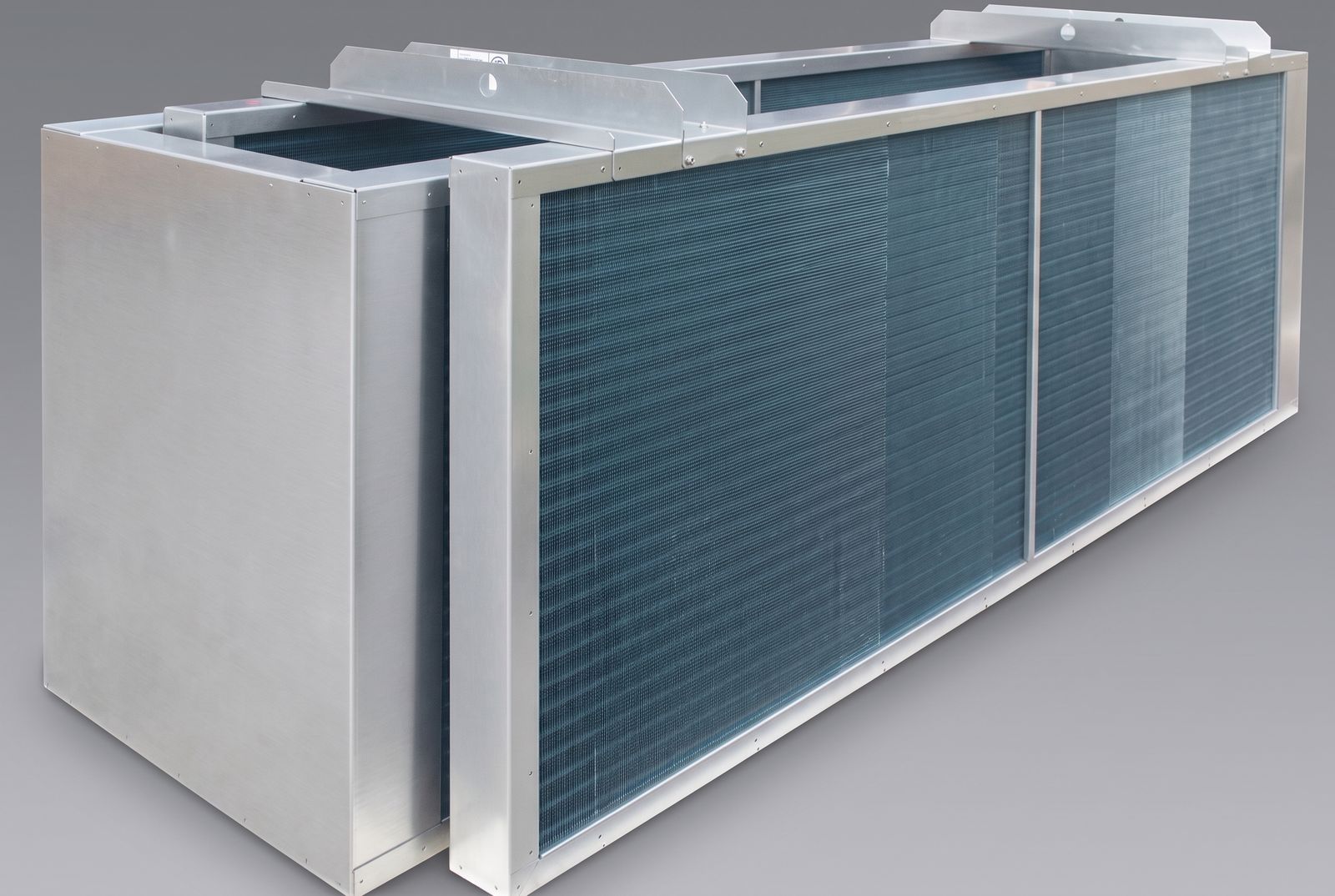

Coated fin and stainless casing for corrosion test chambers, built without fans.
Specifications
US units, 60 Hz power. Marked values are confirmed against the selected model before they go on a quote.
- Tube
- 9/32, 3/8, 1/2 or 5/8 in. Copper, stainless 304 or 316, cupronickel, titanium
- Fin pitch
- 2 to 18 fins per inch. Corrugated, louvered, sine or V wave
- Fin
- Aluminum, hydrophilic, AlMg, copper or stainless. Heresite, Blygold or epoxy coated
- Size
- Finned length to 39 ft (12 m), height to 8.9 ft (2.7 m)
- Casing
- Galvanized, aluminum, stainless 304 or 316, or copper
- Duties
- Evaporators, condensers, water and glycol coils, dry and oil coolers, steam coils
- Refrigerants
- CO2, R410A, R507A and low-temperature secondary coolants
- Connections
- Flanged, grooved or brazed
- Design pressure
- [SPEC - CONFIRM]
- Approval
- UL approved
Models and codes
Built per project. The code is issued with your selection.
How to read the code
KHX-5-26014- KHXHeat exchanger built to print
- 5Tube. 2 for 9/32 in, 3 for 3/8, 4 for 1/2, 5 for 5/8
- 26014Drawing number, year then project
60 Hz. EC fans on 208-230 V/1/60, 208-230 V/3/60 or 460 V/3/60. 49 in fans and larger on a VFD.
Questions buyers ask
What can be built to print?
Coils and heat exchanger blocks with 9/32, 3/8, 1/2 or 5/8 in tube in copper, stainless 304 or 316, cupronickel or titanium, up to 39 ft of finned length.
What do you need for a quote?
The drawing or the duty: fluid, flow, temperatures, air side conditions and the space the coil has to fit.
